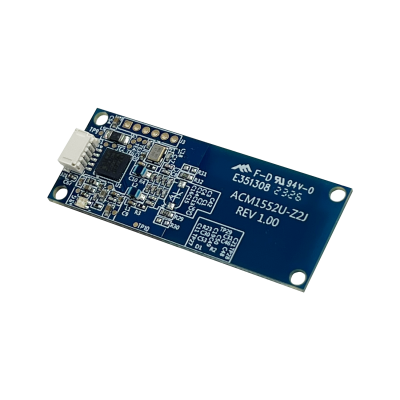

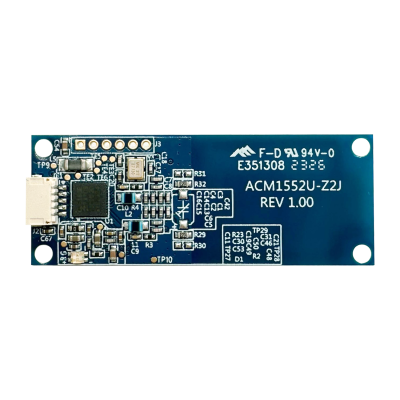

ACM1552U-Z2 Small NFC Reader Module is developed based on the 13.56 MHz contactless technology. It can access contactless card and devices following the ISO 14443, ISO 15693, and ISO 18092 standards. This smart card reader module is designed for fast and easy integration into embedded systems.
ACM1552U-Z2 is a CCID & PC/SC compliant reader, this plug-and-play NFC reader makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications. It also supports three NFC modes:
- Smart Card Reader/Writer
- Card Emulation
- Keyboard Emulation (Configured by this tool)
Specifications:
-
- USB 2.0 Full Speed Interface
- CCID Compliance
- Contactless Smart Card Support:
- Read/Write speed up to 848 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type)
- Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO18092 NFC
- Supports MIFARE Classic®, MIFARE®, DESFire®, MIFARE Ultralight®, MIFARE Plus®, FeliCa and Topaz
- Built-in anti-collision feature
- Supports extended APDU (max. 64 kbytes)
- NFC Support:
- Smart Card Reader/Writer Mode
- Card Emulation Mode
- Keyboard Emulation Mode
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- Peripherals:
- User-controllable bi-color LED (Blue & Green)
- Compact Size
- USB Firmware Upgradability
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | 52.0 x 20.0 x 5.7 |
| Weight (g) | 3.4 |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | 5pin, 1mm pitch, JST SH series compatible |
| Power Source | From USB port |
| Speed | USB 2.0 Full Speed (12 Mbps) compatible with USB 3.0 |
| Cable Length | 1m, Detachable (Upon Request) |
| Contactless Smart Card Interface | |
| Standard | ISO 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE®, FeliCa |
| Protocol |
|
| Built-in Peripherals | |
| LED | 1 bi-color: Blue and Green |
| Other Features | |
| Other Features | Supported Card Types:
|
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | Certifications:
|
| Device Driver Operating System Support | |
| Device Driver Operating System Support |
|
