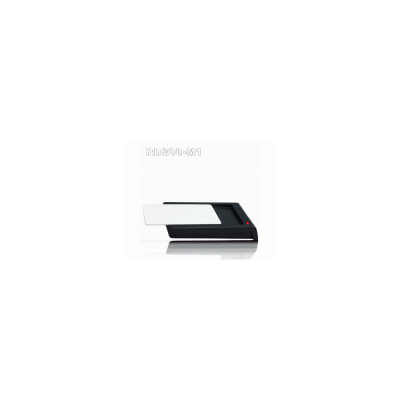

Proximity reader, EM or Mifare card format, USB, 125 KHz (13.5 MHz). Also in version for UHF EPC Class 1 Gen 2;ISQ-18000-6C tags (860-960 MHz) Keyboard emulation, HID. Input S/N of card on cursor position. Provide API development tool
- Transmit Frequency 125KHz/134.2KHz / 13.56MHz or 860-890 MHz
- Tag Supported EM4100 compatible class,FDX-B(ISO11784), ISO-14443A (Mifare 1K S50, 4K S70 4/7-byte UID / Mifare Ultralight) , EPC Class 1 Gen 2;ISQ-18000-6C
- Reading Range 0~6cm (Up to 20 CM in UHF version)
- Communication USB 1.1/2.0 Compatible, USB Mini 5-pin Connector
- Antenna Build-in Antenna
- LED Indicator / Buzzer Two-color LED visual indication and Buzzer
- Operating / Storage Temperature -20˚C ~ +70˚C / -30˚C ~ +80˚C
- Power Supply and Current Consumption Power supply through USB, 5V / 200mA
- Dimension(WxLxH) 105x72x16mm
