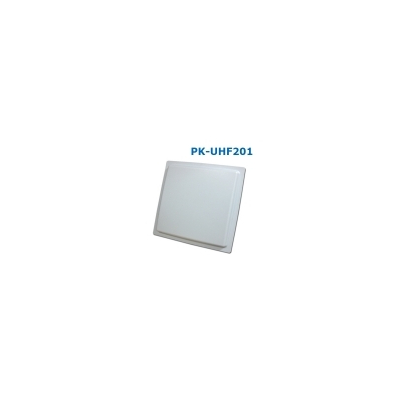

UHF 800 Mhz LongRange RFID čtečka PK-UHF201


14.989,00
(18.136,69  vč. DPH)
PK-UHF201
Skladem
+

PK-UHF201 Long Range RFID čtečka na frekvenci 865-869MHz pro připojení pomocí protokolu wiegand 26/34 s dosahem až 15m (čtení) respektive 6m (zapisování). Krytí IP54.

Specifications
•Dimension: 445 x 445 x 65mm
•Net Weight: 2600g
•Gross Weight: 5000g
•Protocol: ISO18000-6B, EPC Class 1 Gen2(ISO18000-6C)
•Protection Grade: IP54
•Work Frequency: Standard ISM 865-869MHz

•Frequency Hopping: FHSS
•Power Output: 0-30dBm(adjustable)
•Antenna: Built-in 12dBi linearized polarizedantenna
•Interface: RS232, RS485, wiegand 26/34(TCP/IP,Wifi can be customized)
•Operating Mode: Answer,Active,Trigger
•Read Range: 0-15m
•Write Range: 0-6m
•Reading Clue: Buzzer
•Input Power: 100-240V,DC+9V (Power Adapter)
•Power Consumption: 1W
•Operation Temp: -25°C~+60°C
•Storage Temp: -25°C~+80°C
•Humidity: 80%
•Regulatory: Compliant with CE,FCC



Funkce

Micro USB:
USB:
USB C:
RS-232:
RS-232 / PS2:
RS-485:
PCMCIA:
TCP/IP:
Hlasový výstup:
HTTP server:
13.56 MHz:
125 kHz:

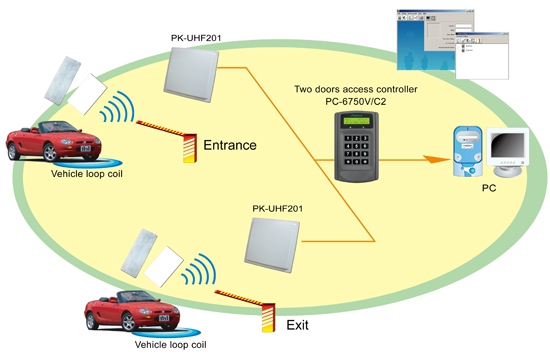

Installation sample (PIC-for-PK-UHF201-1E.jpg, 88 Kb) [Stáhnout]

Installation manual (UHF-201.pdf, 365 Kb) [Stáhnout]
